    hot selling vibrating feeder price mining feeder sand feeder

    Ask Lasest Price
    Brand Name : shanai
    Certification : ISO9001
    Model Number : ZSW-380*96
    Delivery Time : 20DAYS
    Payment Terms : T/T
    Supply Ability : 100
    • Product Details
    • Company Profile

    hot selling vibrating feeder price mining feeder sand feeder

    hot selling vibrating feeder price mining feeder sand feeder

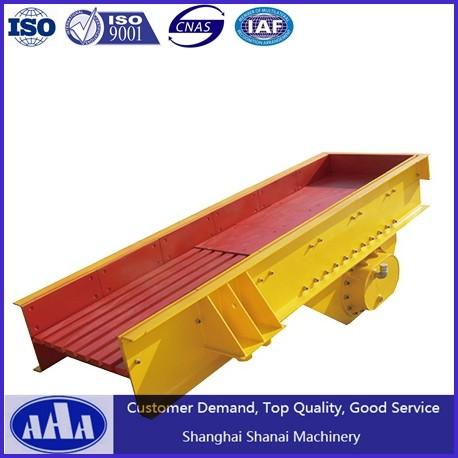

    Vibrating Feeder, also called stone feeder, grantie feeder adopts the vibrating motor to produce vibration force. It is used to feed materials into primary crusher evenly, and meanwhile because of the grit-shaped screen, it can screen away soil contained in the raw material, and increase the capacity of primary crushing. It is suitable to feed material into primary crusher in hydroelectric field, building material and mining industry.

    Operating Principle

    GZD Vibrating Feeder consists of a vibrating shell, mechanical springs, supporting frame and wear-resistant liners. Powered by the motor, the vibrating shell on the mechanical springs vibrates. This vibration throws the materials up and down and the materials begin sliding and moving to the receiving device uniformly and continuously.

    Working Principle

    Vibrating feeder, stone feeder, consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.

    Main Specifications

    ModelMax. Feed Edge
    (mm)
    Processing Capacity
    (t/h)
    Eccentric Shaft Speed
    (r/min)
    Motor Power
    (kw)
    Number of MotorOverall Dimensions
    (L*W*H) (mm)
    Weight
    (t)
    Chute Size
    (mm)
    GZD-300*9042540-1002*2.223307*1430*14502.55900*3000
    GZD-380*9655080-1502*(3-3.7)23870*1860*11903.24960*3800
    2GZD-380*9655080-1602*5.523870*1500*12003.8960*3800
    GZZ-490*110630150-250500-80018.514900*1660*142051100*4800
    GZZ-600*120750190-280500-9002215950*1760*14206.61200*5800
    ZSW-380*9655080-150500-7201113882*1700*13504.36960*3800
    ZSW-490*110630120-280500-8001514957*1850*13505.31100*4900
    ZSW-590*110700200-350500-8002216000*1840*14006.31100*5900
    ZSW-600*130750400-560500-8002216082*2000*14507.81300*6000
